Curcumin-loaded NBs: excessive encapsulation effectivity, stability, and extended circulation
The fabrication course of for Curcumin-loaded nanobubbles (NB-Cur) is depicted in Fig. S4, encompassing thin-film formation, hydration, extrusion, and SF6 gasoline trapping. The curcumin-loaded NBs displayed excessive drug encapsulation effectivity (DEE) and drug loading content material (DLC). The DEE and DLC had been 88 ± 2.98% and three ± 0.56%, respectively. Transmission electron microscopy (TEM) and fluorescence pictures confirmed that NB-Cur particles exhibit a spherical morphology with tough surfaces (Fig. 1a, b). These NBs confirmed uniform measurement distributions (roughly 110 nm by DLS).

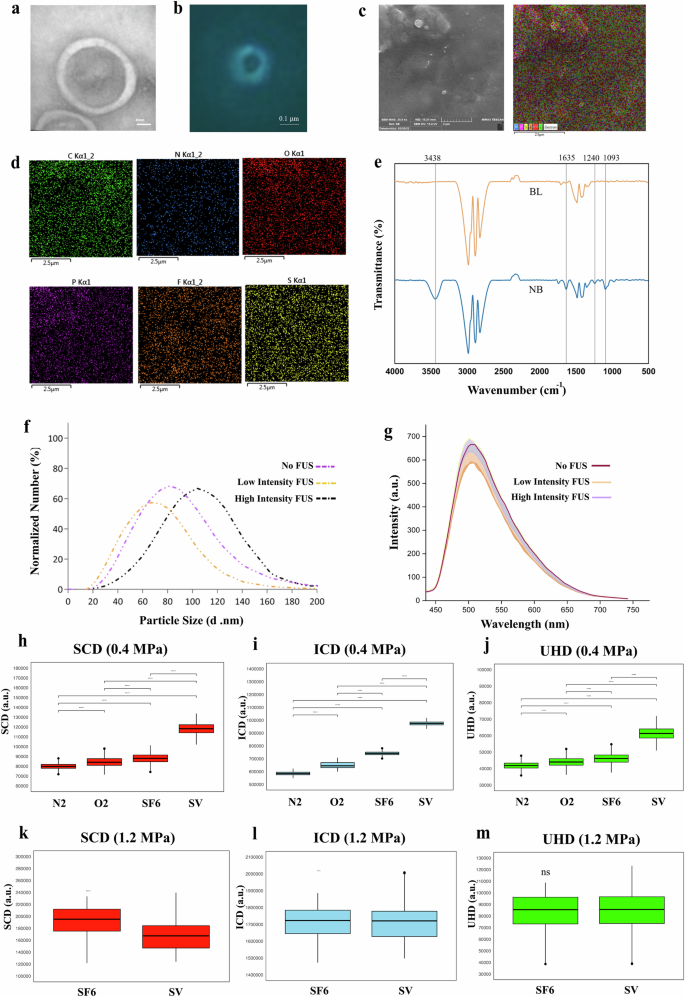

The scale of the NBs was measured utilizing TEM (a); scale bar: 40 nm and fluorescence microscopy (b); scale bar: 100 nm. The fundamental composition of the synthesized NBs was decided by EDS, displaying the presence of key chemical parts (C, N, O, F, P, and S) akin to DPPC, ldl cholesterol, and SF6 in NB-Cur (c, d). The FTIR spectrum illustrates the bi-layer phospholipid membrane and the structural properties of the NBs (e). Measurement distribution of NB-Cur earlier than and after FUS at low (20%) and excessive (50%) intensities was analyzed utilizing DLS (f). The fluorescence spectrum of NB-Cur earlier than and after FUS was additionally recorded within the presence of curcumin, with excitation at 420 nm and emission at 525 nm (g). Steady Cavitation Dose (SCD) (h), Inertial Cavitation Dose (ICD) (i) and Extremely-harmonic dose (UHD) (j) evaluated at 0.4 MPa throughout of all NB formulations (N₂ NBs, O₂ NBs, SF₆ NBs and SV MBs). Steady Cavitation Dose (ok), Inertial Cavitation Dose (l) and Ultraharmonic dose (m) of the SF6 NB formulation as in contrast with SV MBs at 1.2 MPa acoustic strain parts (a.u., imply ± SD, n = 3).
The ratios of drug and lipid concentrations employed throughout NBs preparation are detailed in Desk S3, indicating {that a} 1:4 ratio offers optimum situations for environment friendly drug encapsulation (Fig. S5). Hydrodynamic diameter and zeta potential measurements, in addition to DEE and DLC knowledge, are detailed in Desk S5.
Elemental evaluation and distribution inside NBs
Vitality-dispersive X-ray spectroscopy (EDS) offered perception into the fundamental composition of NB-Cur. In Fig. 1c, d, the attribute parts from DPPC, PEG, ldl cholesterol, and SF6 (together with C, O, N, P, S, and F) had been recognized. Carbon (C) and oxygen (O) are frequent to the lipid parts (DPPC/ldl cholesterol/DSPE-PEG), nitrogen (N) and phosphorus (P) point out the phospholipid headgroups, whereas sulfur (S) and fluorine (F) verify SF6 entrapment. Elemental mapping demonstrated a homogeneous distribution of each the lipid constituents and the gasoline core all through NB-Cur, suggesting a well-defined bilayer shell encapsulating SF6. Additional particulars on elemental composition can be found in Desk S6.
FTIR analyses reveal distinctive peaks akin to lipid and drug purposeful teams
Fourier-transform infrared (FTIR) spectroscopy verified the incorporation of curcumin into the NB construction. As proven in Fig. 1e, NB-Cur displays peaks akin to lipid purposeful teams (e.g., ~1095 cm−1 for C-O stretching in phospholipids and ~3440 cm–1 for O-H) in addition to key curcumin bands (~1424 cm−1 and 1636 cm−1, arising from fragrant and alkene moieties). Specifically 1424 cm−1 (alcohol O-H stretching), 1636 cm−1 (alkene C=C stretching), 1354 cm−1 (attainable sulfonamide S=O stretching, attributed to SF6 interplay), 1095 cm−1 (alcohol C-O stretching), 3440 cm−1 (broad O-H stretch).
These peaks, alongside the EDS findings, verify that NB-Cur accommodates a DPPC/PEG/ldl cholesterol matrix with SF6 gasoline and curcumin embedded in or related to the lipid bilayer. Corresponding knowledge are summarized in Tables S7 and S8.
FUS depth dictates NB measurement distribution and fluorescence emission
To research the impact of FUS on NB properties, NBs had been uncovered to completely different acoustic intensities (e.g., 0.2–1.2 MPa). DLS measurements revealed that at decrease intensities, scale back gasoline strain, resulting in smaller, extra secure NBs, as full bubble collapse is prevented, whereas larger intensities led to a rise in common diameter (by ~20%), presumably as a result of bubble coalescence or gasoline enlargement (Fig. 1f).
Fluorometric analyses corroborated these observations: smaller NBs at decrease FUS depth exhibited fluorescence quenching (as curcumin molecules had been packed extra tightly), whereas the bigger NBs at larger FUS depth displayed enhanced fluorescence emission (Fig. 1g). These knowledge point out that FUS can modulate NB measurement and fluorescence in real-time. The fluorescence conduct noticed herein is in line with prior reports25. In densely packed lipid assemblies, similar to compressed liposomes, molecular crowding promotes self-quenching, whereas elevated membrane fluidity or enlargement alleviates these interactions, enhancing fluorescence depth. These findings assist the premise that FUS-induced modulation of NB structure alters fluorophore packing density, thereby regulating their optical response.
Notably, even on the highest depth examined, NBs didn’t totally collapse, underscoring their sturdy structural integrity beneath pulsed ultrasound situations. The outcomes elucidate the mechanistic foundation of NB responses to various FUS intensities by introducing a thermodynamic framework primarily based on enthalpy and entropy adjustments within the gasoline core. At larger acoustic intensities, elevated kinetic power of gasoline particles results in elevated entropy and bubble coalescence, producing bigger bubbles with lowered inside power and decrease enthalpy26. In distinction, low-intensity FUS will increase the enthalpy of the system with out a corresponding rise in entropy, leading to compressed, smaller bubbles with elevated inside strain.
SF6 NBs present promising stability over MBs at larger pressures
Passive cavitation detection was employed to match SF6 nanobubbles (NBs) with customary SonoVue (SV) MBs and different gas-core NBs (N2, O2). At 0.4 MPa, important variations emerged within the secure cavitation dose (SCD), ultraharmonic dose (UHD), and inertial cavitation dose (ICD) amongst all formulations (Fig. 1h–j). Growing the acoustic strain to 1.2 MPa (close to the higher restrict of the security vary) additional confirmed the steadiness of SF6 NBs. These outcomes (Fig. 1k–m) recommend that SF6-based nanobubbles widen the “cavitation security window” enabling efficient cavitation-driven supply whereas lowering the chance of inertial cavitation harm. Notably, the superior cavitation stability of SF6-filled NBs noticed right here is in settlement with rising literature that NBs can improve BBB opening efficacy in microcirculation whereas mitigating security considerations related to MBs20. By evaluating N2, O2, and SF6 cores, we confirmed that gasoline composition considerably influences cavitation conduct. That is in line with well-known bodily properties; SF6 has low solubility and diffusivity, prolonging bubble lifetime and resonance27. Our cavitation knowledge at 0.4 MPa and 1.2 MPa point out that whilst acoustic strain will increase, SF6 NBs can maintain secure oscillations (evidenced by maintained or elevated SCD). When evaluating the Cohen’s d values between the 2 acoustic pressures, we observe that the variations are significantly extra pronounced for SF6 than for SV (Desk S9). Particularly, for SF6, Cohen’s d is −5.218 (ICD) and −5.287 (SCD), indicating a particularly giant impact of the strain change. In distinction, for SV, Cohen’s d is −3.581 (ICD) and −2.118 (SCD), displaying a average to giant impact. These outcomes point out that conventional microbubbles seem to have the same cavitation at 0.4 and 1.2 MPa, thus suggesting a possible danger of inertial cavitation at 0.4 MPa for SV.
These outcomes are additional supported by the evaluation of the variations in ICD doses noticed for each bubble varieties on the two acoustic pressures. Fig. S6a, b current consultant spectra of SV MBs acquired at two acoustic pressures, whereas Fig. S7a, b present the corresponding spectra for SF₆ NBs. The distinction spectra for every bubble sort on the two pressures are additionally illustrated within the respective panels. This evaluation was carried out to match, for every bubble sort, the completely different acoustic conduct, additionally by analyzing the broadband spectra beneath the 2 acoustic strain situations. This evaluation was carried out by measuring the realm beneath the curve (AUC) of the distinction spectra for every bubble sort in areas excluding harmonics, subharmonics, and ultraharmonics. The 2 areas had been then statistically in contrast utilizing the Wilcoxon check, leading to a p < 0.001 between completely different bubbles (Fig. S8). The outcomes present a Cohen’s d of 0.42 within the constructive path for the SF6-SV distinction, indicating a bigger variation in ICD variations with altering acoustic strain for SF6 in comparison with SV.
These outcomes agree with earlier literature displaying inertial cavitation of surfactant-coated microbubbles occuring at 0.4 MPa28,29. Our evaluation signifies that the acoustic conduct of the bubbles differs considerably between the 2 pressures. Contemplating the Cohen’s d for the comparability of SF6 at 0.4 MPa versus 1.2 MPa, this distinction is related to an elevated danger of inertial cavitation on the decrease strain.
These outcomes reinforce the rationale for utilizing NBs in human BBB opening therapies, the place controlling cavitation is paramount for affected person security. The agar phantom mannequin employs a 580 µm internal diameter channel to allow acoustic detection; this scale exceeds in vivo capillary diameters. Consequently, bubble-wall interactions and confinement results that modulate cavitation thresholds in small capillaries aren’t totally replicated. Nevertheless, relative comparisons between MBs and NBs beneath similar movement and acoustic situations stay legitimate indicators of their differential stability.
FUS therapy considerably enhances mobile drug uptake
Intracellular curcumin uptake in SH-SY5Y cells was quantified by HPLC after numerous therapies. With out ultrasound, NB-Cur offered ~2-fold larger intracellular curcumin focus in comparison with free curcumin on the similar dose, possible reflecting enhanced solubility and/or endocytic uptake of NBs. With FUS utilized together with NB-Cur (FUSNB-Cur), curcumin ranges rose ~4-fold relative to NB-Cur alone and ~8-fold relative to free curcumin (p < 0.0001), as proven in Fig. 2a. This marked enhancement suggests a synergistic impact between ultrasound publicity and NB-mediated supply, in line with transient will increase in membrane permeability beneath acoustic stimulation. The magnitude of uptake enhancement is appropriate with cavitation-driven permeability adjustments. This phenomenon has been documented in different techniques, for instance, Felix et al. confirmed improved gene supply to the mouse mind through FUS and microbubbles, implicating sonoporation in enhanced transfection30.
The influence of Curcumin, NB, and NB-Cur, with or with out FUS at completely different intensities, was evaluated by assessing cell viability, permeability, intracellular Ca2⁺ ranges, ROS exercise, NO manufacturing, and mitochondrial membrane potential. Cell viability of SH-SY5Y cells within the presence of curcumin, NB-Cur, and FUSNB-Cur, measured by MTT assay (a). Quantification of curcumin penetration into cells utilizing HPLC (b). * denotes important variations between handled and management samples, in addition to between the indicated teams; Imply ± SD, **P ≤ 0.01, ****P ≤ 0.0001. Impact of FUS on intracellular calcium ranges, measured after 6 h utilizing FURA-2, AM (c). Intracellular ROS ranges in SH-SY5Y cells following FUS therapy, measured by DCF fluorescence (d). Mitochondrial membrane potential in response to FUS, assessed utilizing RH-123 (e). NO ranges within the cell tradition supernatant, measured by the Griess response assay (f). #, ε, and δ point out significance between management cells (#), NB-treated cells (ε), and NB-Cur-treated cells (δ). FESEM pictures of SH-SY5Y cells, displaying the floor membrane construction. Management cells (g); Cells after therapy with 0.4 MPa FUS (h), displaying alterations in membrane floor construction; scale bar: 5 µm
FUS-induced drug supply triggers metabolic and viability adjustments
To evaluate potential cytotoxic or metabolic results of FUS-enhanced supply, numerous mobile assays had been carried out on SH-SY5Y cells. Experiments had been carried out at a number of FUS intensities (20%, 50%, 80%) and related NB or NB-Cur concentrations.
Viability index

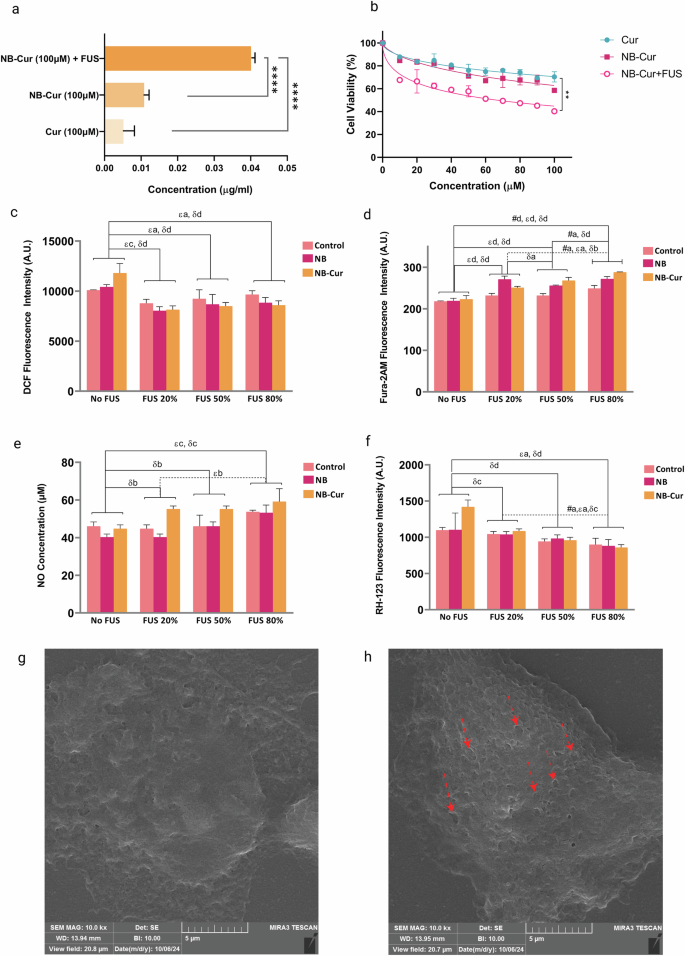

MTT assays demonstrated that at 100 µM curcumin, NB-Cur exerted average cytotoxicity (~70% viability), whereas free curcumin resulted in lowered cell loss of life (~80% viability). When FUS was mixed with NB-Cur (FUSNB-Cur), cell viability dropped additional to ~41–45% of management in a dose-dependent method (Fig. 2b). At a decrease drug focus (0.1 µM), cytotoxicity was minimal, indicating a therapeutic window the place enhanced uptake doesn’t severely compromise cell survival. Hydrogen peroxide (H2O2) served as a constructive management (~99% cell loss of life).
ROS index
DCFDA staining revealed elevated reactive oxygen species (ROS) ranges in NB-Cur-treated cells relative to controls (p < 0.05). Nevertheless, when FUS (20%, 50%, 80%) was utilized to NB-treated or NB+Cur-treated cells, ROS ranges had been considerably lowered in most teams, usually reverting to near-control values (Fig. 2c). These findings recommend FUS, in sure contexts, can modulate or dampen intracellular ROS manufacturing, doubtlessly by enhancing drug penetration of antioxidant compounds (e.g., Cur) or altering redox signaling through mechanical stimulation. The noticed discount in ROS ranges following FUSNB-Cur therapy possible displays the twin performance of FUS in enhancing each focused Cur supply and mobile antioxidant responses. Though low-dose curcumin alone could disrupt membrane stability and elevate ROS31, FUS facilitates its managed intracellular launch, selling antioxidant over pro-oxidant results. Moreover, FUS has been reported to activate redox-regulatory pathways similar to Nrf2/Keap1/HO-1, resulting in upregulation of enzymes like HO-1 and NQO132. Collectively, these mechanisms recommend that the FUSNB system not solely improves curcumin bioavailability but in addition augments intrinsic oxidative stress defenses, thereby contributing to the suppression of ROS.
Calcium ion index
Intracellular calcium focus, measured utilizing fura-2 AM, elevated beneath FUS, significantly at larger intensities (50% and 80%). NBs alone additionally promoted a Ca2+ rise when FUS was utilized, possible through sonoporation or mechanosensitive ion channel activation. Notably, NB-Cur therapy beneath FUS confirmed stepwise will increase in cytosolic Ca2+ with rising intensities, suggesting that enhanced curcumin supply and ultrasound-induced membrane perturbation synergize to modulate calcium dynamics (Fig. second). Our outcomes contact on the neuromodulatory potential of FUS in neuroblastoma cells. The rise in intracellular Ca2+ we noticed in neurons as a result of FUS is analogous to the mechanism by which transcranial ultrasound can excite or inhibit neural circuits. Current work by Yoo et al. confirmed that FUS triggers calcium inflow through mechanosensitive channels (e.g., TRPA1, Piezo) resulting in neuronal firing, but with out lasting damage33. In PD, the place sure mind areas have pathological oscillatory exercise or community dysfunction, there’s curiosity in utilizing low-intensity FUS as a neuromodulation software (akin to deep mind stimulation however non-invasive)24. Whereas our focus was drug supply, the incidental activation of Ca2+ signaling we noticed may contribute to therapeutic outcomes by, for instance, stimulating neurotrophic issue launch or modulating microglial exercise. Zhong et al. reviewed that FUS can scale back microglial over-activation and neuroinflammation in PD fashions, unbiased of any drug, doubtlessly through mechanochemical signaling and blood-brain barrier interactions24. Thus, the strategy we suggest may have a twin profit in NDs: (1) enhanced supply of neuroprotective medication and (2) direct neuromodulation and neuroinflammation attenuation by the FUS itself34.
NO index
Nitric oxide (NO) ranges, measured by the Griess assay, had been elevated in SH-SY5Y cells with rising FUS depth. FUSNB-Cur teams exhibited considerably larger NO at 20%, 50%, and 80% intensities relative to no-FUS controls (p < 0.01, <0.001, <0.001), whereas FUSNB alone tended to scale back NO ranges (Fig. 2e). This advanced sample signifies that FUS can each stimulate and regulate oxidative stress pathways, with NB-Cur doubtlessly influencing downstream signaling by affecting NO manufacturing. The noticed improve in NO ranges following FUS therapy in SH-SY5Y cells could also be related to upregulated expression of tyrosine hydroxylase (TH), a key enzyme in dopamine biosynthesis and homeostatic regulation35. Furthermore, elevated NO might also mirror FUS-induced pro-inflammatory responses, together with elevated cytokine launch and inflammation-driven activation of apoptotic pathways36.
Mitochondrial membrane potential (ΔΨm)
Rhodamine 123 (RH-123) fluorescence revealed that FUS partially depolarized mitochondria in SH-SY5Y cells, as indicated by lowered dye accumulation. NB-Cur and FUSNB-Cur additional lowered ΔΨm, possible reflecting the mixed results of mechanical membrane disruption and elevated intracellular drug focus. At larger FUS intensities, important reductions in ΔΨm had been noticed (Fig. 2f). Scanning electron microscopy pictures confirmed membrane sonoporation beneath FUSNB at 50% depth, suggesting that structural membrane alterations facilitate dye/drug efflux and modulate mitochondrial operate (Fig. 2g, h).
Apoptosis price

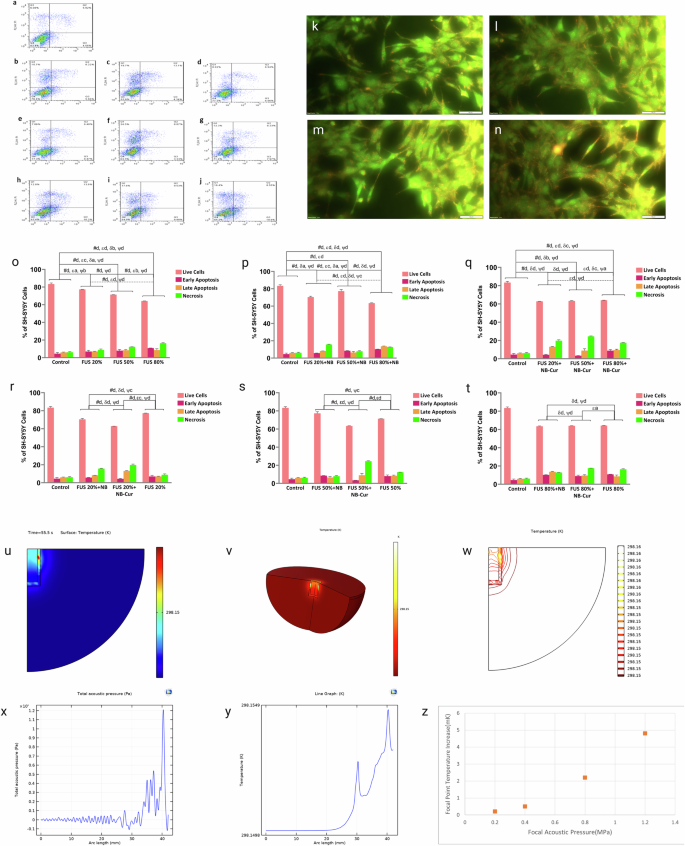

Movement cytometry (Annexin V/PI staining) confirmed that rising FUS depth (20%, 50%, 80%) progressively elevated early/late apoptosis and necrosis price in SH-SY5Y cells (Fig. 3a–j, Desk S11). Including NBs (FUSNB) or NBs plus curcumin (FUSNB-Cur) additional altered these patterns. Notably, FUSNB-Cur induced larger necrosis at decrease FUS intensities however stabilized viability at 80% depth, suggesting a fancy interaction between ultrasound, drug payload, and cell loss of life pathways.
The outcomes confirmed that neither excessive nor low-intensity FUS induced important neurotoxicity. Nevertheless, one should stay cautious: we famous that extreme drug supply beneath FUS (e.g., high-dose curcumin) can induce extra cell loss of life, implying that dosing will want optimization in vivo. In a therapeutic context, this might really be useful if focusing on tumor cells (the place some chemo-enhancement at the price of cell viability is desired), however for neurodegeneration we purpose to keep away from harming wholesome neurons. The doses of curcumin used right here had been excessive relative to typical in vivo plasma ranges; in apply, one would use decrease systemic doses. The outcomes of the movement cytometry evaluation are introduced as a 3D plot in Fig. S9. These cytometric findings had been in line with morphological proof of apoptosis, as confirmed by DAPI nuclear staining (Fig. S10)
Movement cytometry outcomes had been used to evaluate ranges of early apoptosis, late apoptosis, and necrosis in SH-SY5Y cells beneath completely different situations: a management, b, e, h handled with FUS at 20%, 50%, and 80% intensities, c, f, i handled with FUSNB at 20%, 50%, and 80% intensities, and d, g, j handled with FUSNB-Cur at 20%, 50%, and 80% intensities. Apoptosis was additional examined utilizing acridine orange and ethidium bromide staining in management cells (ok) and people handled with FUS (l), FUSNB (m), and FUSNB-Cur (n). A comparative evaluation was carried out on the results of FUS, FUSNB, and FUSNB-Cur at ultrasound intensities of 20% (o), 50% (p), and 80% (q). The results of various FUS intensities had been additionally in contrast throughout FUS (r), FUSNB (s), and FUSNB-Cur (t) therapies. Significance is indicated amongst teams for dwell cells (#), early apoptosis (ε), late apoptosis (δ), and necrosis (ψ). The acoustic strain in several areas at a strain degree of 1.2 MPa (u). Temperature in several areas at a strain of 1.2 MPa (v). Temperature contours across the central area at a strain of 1.2 MPa (w). Acoustic strain diagram on the symmetry line at a strain of 1.2 MPa (x). Temperature plot on the symmetry line at a strain of 1.2 MPa (y). Temperature graph as a operate of strain on the central level (z)
Mobile morphological state when it comes to acidic organelle manufacturing
Acridine orange (AO)/EtBr staining revealed the formation of acidic vesicular organelles, an indicator of late-stage autophagy, in cells handled with FUS, FUSNB, and FUSNB-Cur. After 6 h, pronounced orange fluorescence emerged within the FUSNB-Cur group, significantly close to websites of NB interplay, earlier than spreading intracellularly (Fig. 3k–n).
Alteration of BBB integrity and tight junction gene expression
A human mind endothelial cell line (hCMEC/D3) was employed to judge an in vitro blood-brain barrier (BBB) mannequin following FUS. TEER decreased considerably post-FUS (Fig. S11). Concomitantly, mRNA ranges of tight/adherens junction genes, specifically CLDN5 (claudin-5), CDH5 (VE-cadherin), and TJP1 (ZO-1), had been monitored (Fig. 4a–c). At 50% FUS depth, these genes had been upregulated, suggestive of a compensatory response to barrier disruption. Nevertheless, when curcumin-loaded NBs had been current throughout 50% FUS, the upregulation of CLDN5 and CDH5 was attenuated. The attenuated transcriptional upregulation of CLDN5, CDH5, and TJP1 noticed within the FUSNB-Cur group possible displays the anti-inflammatory and antioxidant exercise of curcumin, which suppresses NF-κB and cytokine-mediated restore signaling that usually amplifies tight-junction gene expression following BBB perturbation. This pharmacologic modulation could promote extra physiologic barrier restoration whereas stopping extreme junctional reinforcement. Since BBB resealing kinetics weren’t straight measured right here, future research using dynamic contrast-enhanced MRI and immunohistochemical TJ-protein mapping throughout a number of time factors will likely be important to outline the temporal profile and completeness of BBB restoration. Our discovering that FUS can elevate endothelial tight junction gene expression post-treatment suggests the BBB repairs itself, which is in step with MRI observations that gadolinium leakage is transient (closure in <24 h)37. It’s reassuring that even repeated BBB openings in people (e.g., month-to-month FUS in Alzheimer’s sufferers) haven’t resulted in power BBB leakage or inflammation38. Melting curve analyses confirming the specificity of CLDN5, TJP1, CDH5, and GAPDH amplification are proven in Fig. S12. The specificity of gene amplification was verified via consultant amplicon bands (Fig. S13).
Expression ranges of CLDN5, CDH5, and TJP1 in hCMEC/D3 cells peaked at 50% FUS depth, indicating enhanced manufacturing of claudin-5, VE-cadherin, and ZO-1 proteins (b). Decrease expression ranges had been noticed at 20% and 80% FUS intensities (a, c). Co-treatment with FUS and NB-Cur resulted in lowered expression of claudin-5 and VE-cadherin in comparison with FUS therapy alone (a, b, c).
Steady temperature response to focus strain variations
COMSOL simulations evaluated temperature adjustments on the ultrasound focus for pressures starting from 0.2 to 1.2 MPa at 1.5 MHz. Even on the highest strain, the maximal temperature improve was solely ~0.01 °C, indicating minimal thermal results and validating the security of those FUS settings. The acoustic and thermophysical parameters utilized in COMSOL simulations are summarized in Desk S12, and the boundary situations utilized within the fashions are listed in Desk S13.
FUS-mediated focused supply will increase mind uptake of curcumin-loaded nanobubbles
In vivo biodistribution research utilizing SWR/J mice confirmed that free curcumin didn’t accumulate within the mind (Group 1) and NB-Cur with out FUS (Group 2), as evidenced by the absence of fluorescence indicators within the head area (Fig. 5a–h). In vivo Fluorescence imaging revealed minimal mind accumulation of free curcumin co-administered with FUSNB (Group 3), indicating that within the absence of NB encapsulation, FUS offers solely a marginal enhancement in mind uptake (Fig. 5i–l). When mice acquired NB-Cur plus FUS (Group 4, FUSNB-Cur), a powerful fluorescence sign appeared within the mind. This enhanced distribution was localized primarily to the sonicated hemisphere, reflecting the spatial selectivity of FUS for BBB opening. Crucially, histological examination confirmed no hemorrhage or main tissue harm, indicating that the process is secure at these parameters. Thus, FUS-mediated supply considerably improves the therapeutic potential of curcumin-loaded NBs for crossing the BBB and focusing on the mind (Fig. 5m–p). Security is a essential facet addressed by our examine and supported by current advances. The FUS parameters used (MI ≤ 0.9, 10% responsibility, 1 min publicity) are inside ranges that a number of preclinical and early scientific research have discovered to be well-tolerated. We noticed no hemorrhages or persistent cell harm, which is in line with the consensus that BBB opening may be achieved repeatedly with out opposed results if cavitation is saved within the secure regime38. Taken collectively, our outcomes reinforce some great benefits of nanobubbles over typical microbubbles for FUS-mediated BBB opening as summarized in Fig. S14. SF6-core NBs offered a balanced sturdy acoustic response with lowered inertial collapse, which translated into environment friendly but secure drug transport. In parallel, the neuromodulatory results noticed, together with managed calcium inflow and transient mitochondrial adjustments, recommend that FUS could exert complementary therapeutic actions past drug supply. Importantly, BBB integrity was restored quickly after therapy, and thermal results had been negligible, highlighting the translational relevance of this strategy. Systemic security was additional validated by hemolysis assays, which confirmed no erythrocyte harm beneath NBs or FUS situations (Fig. S15), additional supporting their systemic biocompatibility. Histological evaluation of the mind confirmed the absence of tissue harm or structural alterations within the sonicated areas (Fig. S16a, b), supporting the native security of the utilized FUS parameters.
Optical fluorescence imaging was employed to visualise the biodistribution of NB-Cur in SWR/J mice, demonstrating the efficacy of FUS-mediated focused supply in enhancing curcumin penetration and localization throughout the blood-brain barrier (BBB). Fluorescence depth was measured earlier than and 1 h post-injection. Photos had been captured within the susceptible place earlier than therapy (a, e, i, m), 1 h post-treatment (b, f, j, n), and within the supine place earlier than (c, g, ok, o) and after therapy (d, h, l, p). Within the Cur group, curcumin did not successfully penetrate the BBB and confirmed instability, leading to negligible fluorescence within the mind. Within the NB-Cur group, curcumin-loaded NBs had been distributed homogeneously all through the physique, however with no important mind fluorescence. Within the co-delivery group (FUSNB+Cur), the place NB and curcumin had been administered along with FUS, there was restricted curcumin mind penetration and uneven distribution throughout physique tissues. In distinction, the FUSNB-Cur group, the place FUS was utilized to mice injected with NB-Cur, confirmed a marked improve in curcumin supply to the mind, with larger fluorescence depth and extra exact localization inside mind tissue in comparison with the opposite teams.
Our examine underlines the promise of FUS-mediated drug supply by offering proof that bi-layer NBs are efficient and secure automobiles for BBB crossing. It bridges cutting-edge analysis that emphasizes optimizing cavitation (through bubble engineering and suggestions management), exploring neuromodulatory mechanisms of FUS, and making use of these applied sciences to CNS illness which have to date been inaccessible to most therapeutics. We confirmed FUS can improve drug supply to neurons, affect pathological processes (oxidative stress, Apoptosis, Intracellular Ca2+), and achieve this with out harming the BBB or surrounding tissue. These findings encourage additional investigation into NB-assisted FUS for NDs. Future research could deal with power therapy fashions of NDs to judge long-term purposeful outcomes (e.g., behavioral enhancements, neuronal survival), mixture therapies (FUS with neurotrophic elements, immunotherapy, or gene editing-loaded NBs), and the event of MRI-visible bi-layer NBs for seamless integration with scientific FUS techniques. With continued interdisciplinary efforts, it’s believable that inside the subsequent decade, FUS-triggered nanomedicine may turn into a routine a part of managing CNS problems, providing sufferers a non-invasive but extremely focused therapeutic modality that was unavailable within the period of conventional drug supply.
